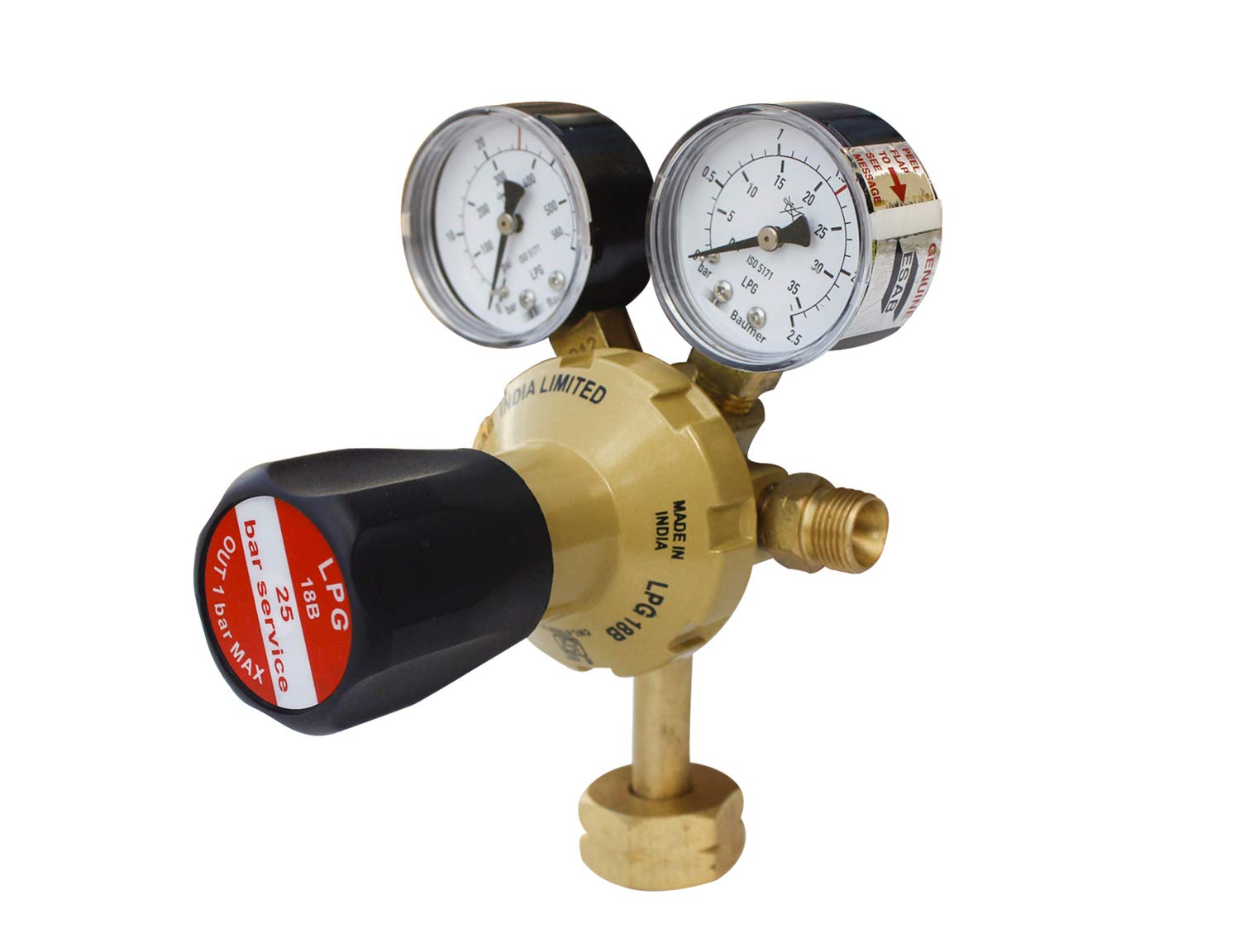

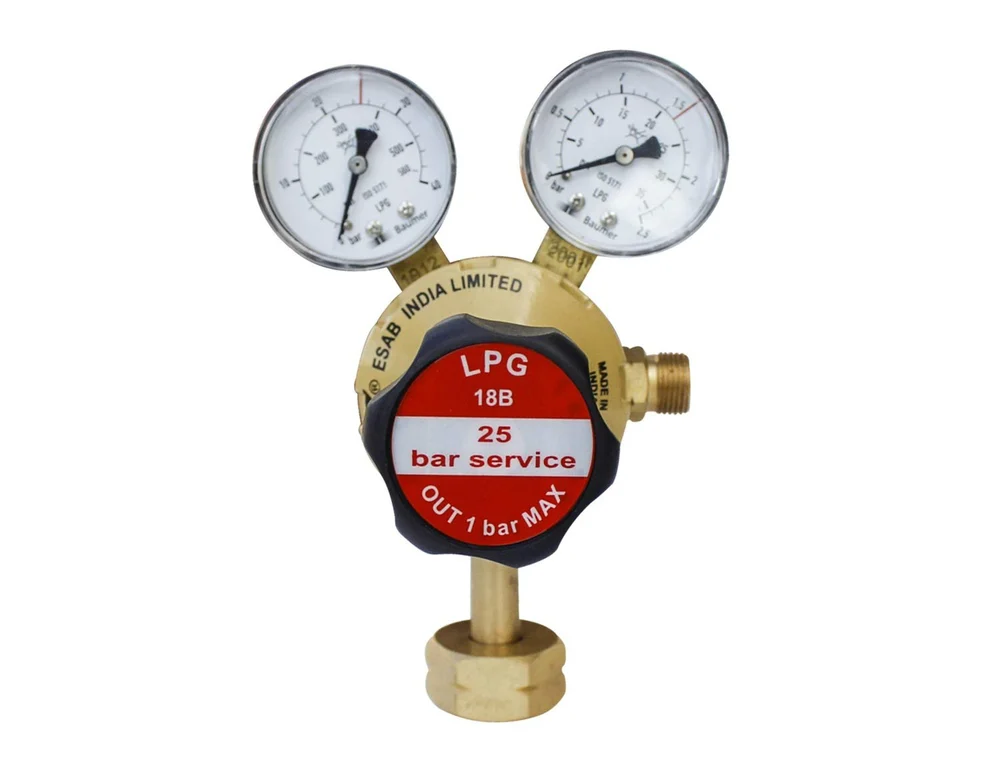

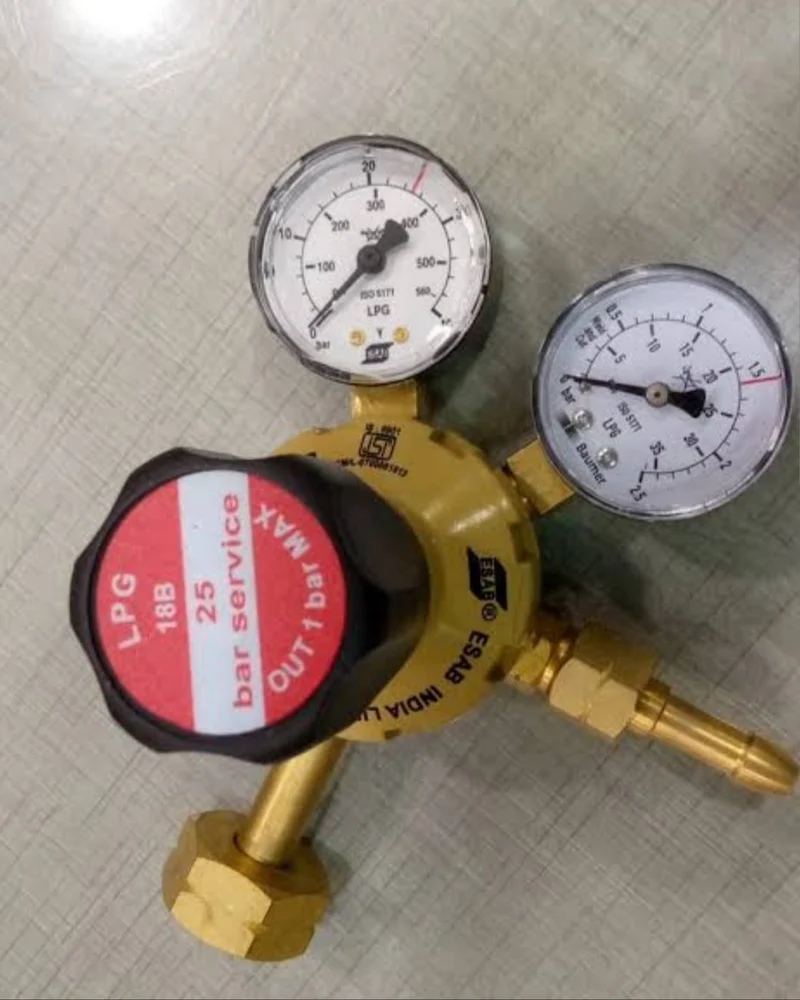

Esab LPG18B - Single Stage LPG Regulator (2 Gauge)
Esab Regulators
Esab LPG18B Single Stage LPG Regulator with two Gauge
'B' Series single stage regulators continue the tradition of superior performance in single stage range. The latest materials and advanced component design make these regulators suitable to meet the stringent demands of use in shop-floor as well as outdoor conditions with enhanced safety. ESAB IOX-13B and ESAB IDA-4C are the toughest and most reliable units for oxy fuel gas serivce. These are provided with two pressure gauges one to indicate outlet pressure and other to inlet pressure. Also availble are 'C' series single stage regulators with only one gauge to show the cylinder pressure. The working pressure calibrated on the bonnet can be set by the pressure adjusting knob. A low pressure LPG regulator suitable for OXY-LPG cutting, Air-LPG equipment and heating application is also available. The outlet adjustable pressure is 0-1 kg/cm2.
Imported safety pressure gauges designed for 300 bar service pressure, confirming to ISO 5171 standards.
ESAB Single Stage Regulators are offered for the full range of industrial gases for welding & cutting. The forged body and Zn alloy bonnet ensures ruggedness for use in challenging environments and is leak proof, thereby ensuring safe work environment. The neoprene bonded seat valve ensures long life and the self-resetting safety relief valve ensures the highest level of protection. The strict quality assurance protocols enforces the highest level of priority on Safety and BIS certications are available for a wide range of products.
| Model : | ESAB LPG-18B |
| Type of Gas : | Propane/LPG |
| Max. Inlet Pressure (Bar) : | 25 bar |
| Max. Outlet Pressure (Bar) : | 1 bar |
| Max. Flow : |
180 Lit/min 423.8 ft3/h |
| Inlet Connection : |
21.8X1.814 LH Female |
| Outlet Connection : |
3/8 BSP LH Male |
| Main Application : |
All welding cutting and heating process |
| Inlet Gauge Range (Bar) : |
0-40 bar |
| Outlet Gauge Range (Bar) : |
0-2.5 bar |
